老毛子固件风骚网络状态指示灯

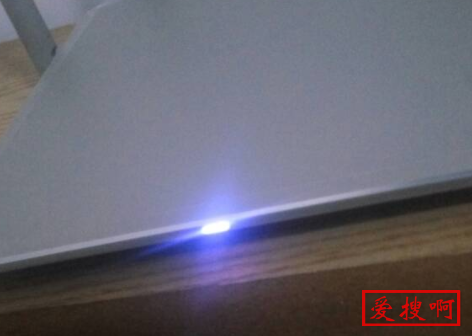

【袋鼠】LED灯控制，开机红灯，动态监测，联网绿灯，绿灯根据网速闪烁，断网红灯
老毛子固件修改网络状态指示灯颜色设置
1、自定义设置—网络监测—监测模式—持续监测
2、在最底下点开在网络访问状态改变时运行脚本
3、在最底下加入以下代码
4、加入以下代码：
if [ $1 == "0" ] ; then # 网络不通 mtk_gpio -d 9 1 mtk_gpio -d 9 0 mtk_gpio -d 9 1 logger -t "【网络检测】" "网络已断开，红灯！" else # 网络通 mtk_gpio -d 9 0 mtk_gpio -d 9 1 mtk_gpio -d 9 0 logger -t "【网络检测】" "网络已连接，绿灯！" fi
或者直接复制粘贴整段代码，代码有改动：
#!/bin/sh
#/etc/storage/inet_state_script.sh
### Custom user script
### Called on Internet status changed
### $1 - Internet status (0/1)
### $2 - elapsed time (s) from previous state
#copyright by hiboy
logger -t "【网络检测】" "互联网状态:$1, 经过时间:$2s."
# 【自动切换中继信号】功能 需要到【无线网络 - 无线桥接】页面配置
. /etc/storage/ap_script.sh
baidu='http://gb.corp.163.com/gb/images/spacer.gif'
aptimes=$1
if [ $((aptimes)) -gt "9" ] ; then
mtk_gpio -d 9 1
mtk_gpio -d 9 0
mtk_gpio -d 9 1
logger -t "【网络检测】" "网络已断开，红灯！"
logger -t "【连接 AP】" "$1秒后, 自动搜寻 ap"
sleep $1
else
logger -t "【连接 AP】" "10秒后, 自动搜寻 ap"
sleep 10
fi
cat /tmp/ap2g5g.txt | grep -v '^#' | grep -v "^$" > /tmp/ap2g5g
if [ ! -f /tmp/apc.lock ] && [ "$1" != "1" ] && [ -s /tmp/ap2g5g ] ; then
touch /tmp/apc.lock
a2=`iwconfig apcli0 | awk -F'"' '/ESSID/ {print $2}'`
a5=`iwconfig apclii0 | awk -F'"' '/ESSID/ {print $2}'`
[ "$a2" = "" -a "$a5" = "" ] && ap=1 || ap=0
if [ "$ap" = "1" ] || [ "$2" = "t" ] && [ -f /tmp/apc.lock ] ; then
#搜寻开始/tmp/ap2g5g
while read line
do
c_line=`echo $line | grep -v '^#' | grep -v "^$"`
if [ ! -z "$c_line" ] ; then
apc=$line
radio=$(echo $apc | cut -d $fenge -f1)
# ApCli 2.4Ghz
if [ "$radio" = "2" ] ; then
rtwlt_mode_x=`nvram get rt_mode_x`
else
rtwlt_mode_x=`nvram get wl_mode_x`
fi
# [ "$rtwlt_mode_x" = "3" ] || [ "$rtwlt_mode_x" = "4" ] &&
rtwlt_mode_x=$(echo $apc | cut -d $fenge -f2)
rtwlt_sta_wisp=$(echo $apc | cut -d $fenge -f3)
rtwlt_sta_ssid=$(echo $apc | cut -d $fenge -f4)
rtwlt_sta_wpa_psk=$(echo $apc | cut -d $fenge -f5)
rtwlt_sta_bssid=$(echo $apc | cut -d $fenge -f6 | tr 'A-Z' 'a-z')
if [ "$radio" = "2" ] ; then
ap=`iwconfig | grep 'apcli0' | grep ESSID:"$rtwlt_sta_ssid" | wc -l`
if [ "$ap" = "0" ] ; then
ap=`iwconfig |sed -n '/apcli0/,/Rate/{/apcli0/n;/Rate/b;p}' | grep $rtwlt_sta_bssid | tr 'A-Z' 'a-z' | wc -l`
fi
else
ap=`iwconfig | grep 'apclii0' | grep ESSID:"$rtwlt_sta_ssid" | wc -l`
if [ "$ap" = "0" ] ; then
ap=`iwconfig |sed -n '/apclii0/,/Rate/{/apclii0/n;/Rate/b;p}' | grep $rtwlt_sta_bssid | tr 'A-Z' 'a-z' | wc -l`
fi
fi
if [ "$ap" = "1" ] ; then
logger -t "【连接 AP】" "当前是 $rtwlt_sta_ssid, 停止搜寻"
rm -f /tmp/apc.lock
if [ $((aptime)) -ge "9" ] ; then
/etc/storage/inet_state_script.sh $aptime "t" &
sleep 2
logger -t "【连接 AP】" "直到连上最优先信号 $(echo $(grep -v '^#' /tmp/ap2g5g | grep -v "^$" | head -1) | cut -d $fenge -f4)"
fi
exit
else
logger -t "【连接 AP】" "自动搜寻 $rtwlt_sta_ssid"
fi
if [ "$radio" = "2" ] ; then
# ApCli 2.4Ghz
iwpriv apcli0 set SiteSurvey=1
if [ ! -z "$rtwlt_sta_bssid" ] ; then
logger -t "【连接 AP】" "自动搜寻 $rtwlt_sta_ssid:$rtwlt_sta_bssid"
site_survey=$(iwpriv apcli0 get_site_survey | sed -n "/$rtwlt_sta_bssid/p" | tr 'A-Z' 'a-z')
else
site_survey=$(iwpriv apcli0 get_site_survey | sed -n "/$rtwlt_sta_ssid/p" | tr 'A-Z' 'a-z')
fi
else
iwpriv apclii0 set SiteSurvey=1
if [ ! -z "$rtwlt_sta_bssid" ] ; then
logger -t "【连接 AP】" "自动搜寻 $rtwlt_sta_ssid:$rtwlt_sta_bssid"
site_survey=$(iwpriv apclii0 get_site_survey | sed -n "/$rtwlt_sta_bssid/p" | tr 'A-Z' 'a-z')
else
site_survey=$(iwpriv apclii0 get_site_survey | sed -n "/$rtwlt_sta_ssid/p" | tr 'A-Z' 'a-z')
fi
fi
if [ -z "$site_survey" ] ; then
logger -t "【连接 AP】" "没找到 $rtwlt_sta_ssid, 如果含中文请填写正确的MAC地址"
ap3=1
fi
if [ ! -z "$site_survey" ] ; then
Ch=${site_survey:0:4}
SSID=${site_survey:4:33}
BSSID=${site_survey:37:20}
Security=${site_survey:57:23}
Signal=${site_survey:80:9}
WMode=${site_survey:89:7}
ap3=0
fi
if [ "$apblack" = "1" ] ; then
apblacktxt=$(grep "【SSID:$rtwlt_sta_bssid" /tmp/apblack.txt)
if [ ! -z $apblacktxt ] ; then
logger -t "【连接 AP】" "当前是黑名单 $rtwlt_sta_ssid, 跳过黑名单继续搜寻"
ap3=1
else
apblacktxt=$(grep "【SSID:$rtwlt_sta_ssid" /tmp/apblack.txt)
if [ ! -z $apblacktxt ] ; then
logger -t "【连接 AP】" "当前是黑名单 $rtwlt_sta_ssid, 跳过黑名单继续搜寻"
ap3=1
fi
fi
fi
if [ "$ap3" != "1" ] ; then
if [ "$radio" = "2" ] ; then
nvram set rt_channel=$Ch
iwpriv apcli0 set Channel=$Ch
else
nvram set wl_channel=$Ch
iwpriv apclii0 set Channel=$Ch
fi
if [[ $(expr $Security : ".*none*") -gt "1" ]] ; then
rtwlt_sta_auth_mode="open"
rtwlt_sta_wpa_mode="0"
fi
if [[ $(expr $Security : ".*1psk*") -gt "1" ]] ; then
rtwlt_sta_auth_mode="psk"
rtwlt_sta_wpa_mode="1"
fi
if [[ $(expr $Security : ".*2psk*") -gt "1" ]] ; then
rtwlt_sta_auth_mode="psk"
rtwlt_sta_wpa_mode="2"
fi
if [[ $(expr $Security : ".*wpapsk*") -gt "1" ]] ; then
rtwlt_sta_auth_mode="psk"
rtwlt_sta_wpa_mode="1"
fi
if [[ $(expr $Security : ".*tkip*") -gt "1" ]] ; then
rtwlt_sta_crypto="tkip"
fi
if [[ $(expr $Security : ".*aes*") -gt "1" ]] ; then
rtwlt_sta_crypto="aes"
fi
if [ "$radio" = "2" ] ; then
nvram set rt_mode_x=$rtwlt_mode_x
nvram set rt_sta_wisp=$rtwlt_sta_wisp
nvram set rt_sta_ssid=$rtwlt_sta_ssid
nvram set rt_sta_auth_mode=$rtwlt_sta_auth_mode
nvram set rt_sta_wpa_mode=$rtwlt_sta_wpa_mode
nvram set rt_sta_crypto=$rtwlt_sta_crypto
nvram set rt_sta_wpa_psk=$rtwlt_sta_wpa_psk
#强制20MHZ
nvram set rt_HT_BW=0
else
nvram set wl_mode_x=$rtwlt_mode_x
nvram set wl_sta_wisp=$rtwlt_sta_wisp
nvram set wl_sta_ssid=$rtwlt_sta_ssid
nvram set wl_sta_auth_mode=$rtwlt_sta_auth_mode
nvram set wl_sta_wpa_mode=$rtwlt_sta_wpa_mode
nvram set wl_sta_crypto=$rtwlt_sta_crypto
nvram set wl_sta_wpa_psk=$rtwlt_sta_wpa_psk
fi
logger -t "【连接 AP】" "$rtwlt_mode_x $rtwlt_sta_wisp $rtwlt_sta_ssid $rtwlt_sta_auth_mode $rtwlt_sta_wpa_mode $rtwlt_sta_crypto $rtwlt_sta_wpa_psk"
nvram commit
#restart_wan
#sleep 10
radio2_restart
#sleep 4
#if [ "$radio" = "2" ] ; then
#iwpriv apcli0 set ApCliEnable=0
#iwpriv apcli0 set ApCliAutoConnect=1
#else
#iwpriv apclii0 set ApCliEnable=0
#iwpriv apclii0 set ApCliAutoConnect=1
#fi
sleep 15
logger -t "【连接 AP】" "【Ch:$Ch】【SSID:$SSID】【BSSID:$BSSID】"
logger -t "【★连接 AP】" "【Security:$Security】【Signal(%):$Signal】【WMode:$WMode】"
if [ "$radio" = "2" ] ; then
ap=`iwconfig | grep 'apcli0' | grep 'ESSID:""' | wc -l`
else
ap=`iwconfig | grep 'apclii0' | grep 'ESSID:""' | wc -l`
fi
if [ "$ap" = "0" ] && [ "$apauto2" = "1" ] ; then
ping_text=`ping -4 114.114.114.114 -c 1 -w 2 -q`
ping_time=`echo $ping_text | awk -F '/' '{print $4}'| awk -F '.' '{print $1}'`
ping_loss=`echo $ping_text | awk -F ', ' '{print $3}' | awk '{print $1}'`
if [ ! -z "$ping_time" ] ; then
echo "ping：$ping_time ms 丢包率：$ping_loss"
else
echo "ping：失效"
fi
if [ ! -z "$ping_time" ] ; then
logger -t "【★连接 AP】" "$ap 已连接上 $rtwlt_sta_ssid, 成功联网"
# 网络通
mtk_gpio -d 9 0
mtk_gpio -d 9 1
mtk_gpio -d 9 0
logger -t "【网络检测】" "网络已连接，绿灯！"
ap=0
else
ap=1
logger -t "【连接 AP】" "$ap 已连接上 $rtwlt_sta_ssid, 但未联网, 跳过继续搜寻"
fi
fi
if [ "$ap" = "1" ] ; then
logger -t "【连接 AP】" "$ap 无法连接 $rtwlt_sta_ssid"
else
logger -t "【连接 AP】" "$ap 已连接上 $rtwlt_sta_ssid"
if [ "$apblack" = "1" ] ; then
ping_text=`ping -4 114.114.114.114 -c 1 -w 2 -q`
ping_time=`echo $ping_text | awk -F '/' '{print $4}'| awk -F '.' '{print $1}'`
ping_loss=`echo $ping_text | awk -F ', ' '{print $3}' | awk '{print $1}'`
if [ ! -z "$ping_time" ] ; then
echo "ping：$ping_time ms 丢包率：$ping_loss"
else
echo "ping：失效"
fi
if [ ! -z "$ping_time" ] ; then
echo "online"
else
apblacktxt="$ap AP不联网列入黑名单:【Ch:$Ch】【SSID:$SSID】【BSSID:$BSSID】【Security:$Security】【Signal(%):$Signal】【WMode:$WMode】"
logger -t "【连接 AP】" "$apblacktxt"
echo $apblacktxt >> /tmp/apblack.txt
rm -f /tmp/apc.lock
/etc/storage/inet_state_script.sh 0 "t" &
sleep 2
logger -t "【连接 AP】" "跳过黑名单继续搜寻, 直到连上最优先信号 $(echo $(grep -v '^#' /tmp/ap2g5g | grep -v "^$" | head -1) | cut -d $fenge -f4)"
exit
fi
fi
if [ "$rtwlt_sta_ssid" = $(echo $(grep -v '^#' /tmp/ap2g5g | grep -v "^$" | head -1) | cut -d $fenge -f4) ] ; then
logger -t "【连接 AP】" "当前是 $rtwlt_sta_ssid, 停止搜寻"
rm -f /tmp/apc.lock
logger -t "【连接 AP】" "当前连上最优先信号 $rtwlt_sta_ssid"
logger -t "【★】" "【信号强度】【Signal(%):$Signal】"
# 网络通
mtk_gpio -d 9 0
mtk_gpio -d 9 1
mtk_gpio -d 9 0
logger -t "【网络检测】" "网络已连接，绿灯！"
exit
else
rm -f /tmp/apc.lock
if [ $((aptime)) -ge "9" ] ; then
/etc/storage/inet_state_script.sh $aptime "t" &
sleep 2
logger -t "【连接 AP】" "直到连上最优先信号 $(echo $(grep -v '^#' /tmp/ap2g5g | grep -v "^$" | head -1) | cut -d $fenge -f4)"
mtk_gpio -d 9 1
mtk_gpio -d 9 0
mtk_gpio -d 9 1
logger -t "【网络检测】" "网络已断开，红灯！"
fi
exit
fi
fi
fi
sleep 5
fi
a2=`iwconfig apcli0 | awk -F'"' '/ESSID/ {print $2}'`
a5=`iwconfig apclii0 | awk -F'"' '/ESSID/ {print $2}'`
[ "$a2" = "" -a "$a5" = "" ] && ap=1 || ap=0
sleep 2
done < /tmp/ap2g5g
sleep 60
rm -f /tmp/apc.lock
if [ "$ap" = "1" ] || [ "$2" = "t" ] && [ -f /tmp/apc.lock ] ; then
#搜寻开始/tmp/ap2g5g
/etc/storage/inet_state_script.sh 0 "t" &
sleep 2
logger -t "【连接 AP】" "继续搜寻"
exit
fi
sleep 1
fi
rm -f /tmp/apc.lock
sleep 1
fi
killall sh_apauto.sh
if [ -s /tmp/ap2g5g ] ; then
/tmp/sh_apauto.sh &
else
echo "" > /tmp/apauto.lock
fi
logger -t "【连接 AP】" "脚本完成"荒野无灯Padavan固件修改LED颜色脚本
#!/bin/sh echo --- WatchDog --- mtk_gpio -w 8 0 & mtk_gpio -d 11 0 & mtk_gpio -w 10 1 ping -c 1 119.29.29.29 >/dev/null if [ $? -eq 0 ] then echo "WAN Online !" echo --- Exit --- mtk_gpio -w 8 0 & mtk_gpio -d 11 0 & mtk_gpio -w 10 0 else echo "WAN Offline !" mtk_gpio -w 8 1 & mtk_gpio -d 11 1 & mtk_gpio -w 10 1 fi
将以上代码保存为led.sh后缀的文件，然后放在/etc/storage/中并设置文件权限755，之后在Crontab中添加一条
*/1 * * * * /etc/storage/led.sh
即可。联网蓝灯，断网红黄同亮。
